M30/M35 MILLTURN – The small one for everything!
Introducing the "small but powerful" WFL powerhouses – from the M30 to the M35, all the way through to the M20 MILLTURN. In the next two Complete editions, we will be turning our full attention to the smaller MILLTURNS in the WFL range. Discover everything you need to know about the technological highlights and their USPs.

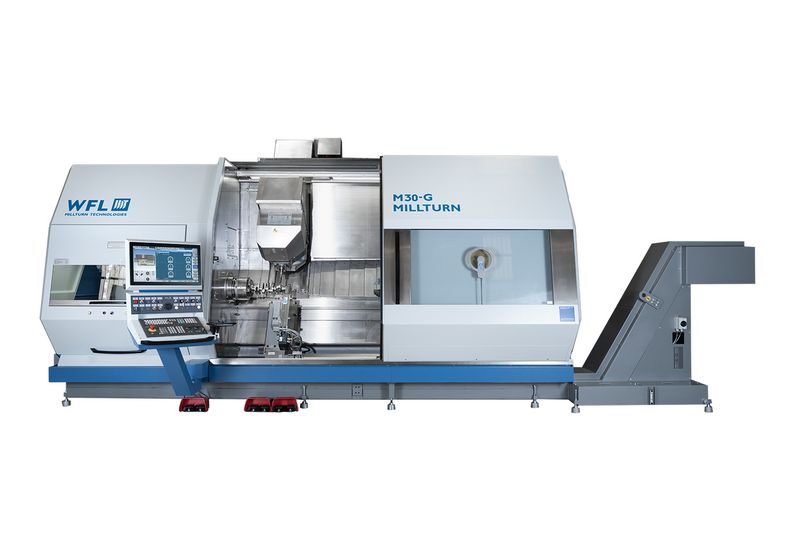

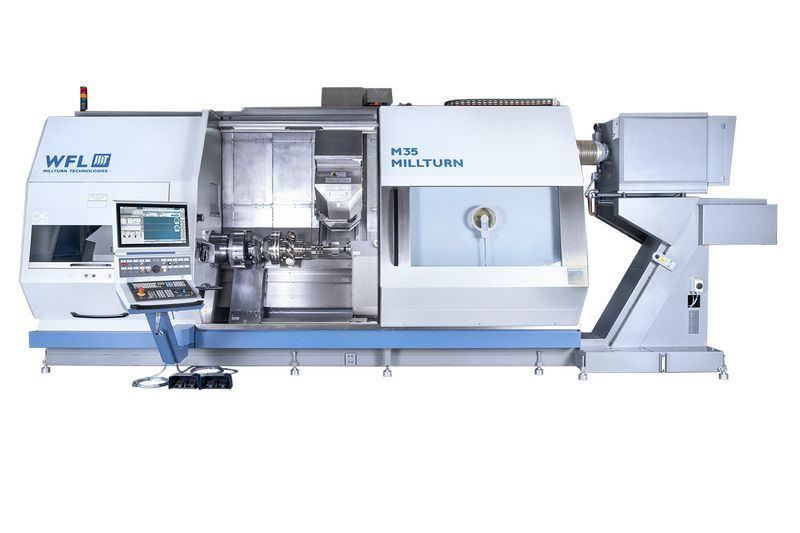

M30/M35 MILLTURN – the WFL multi-talented machine for complex shaft and chuck parts.
- Modular machine concept for customer-specific manufacturing solutions
- Solid slant bed made from grey cast iron
- Functionality of a turning machine, a 5-axis turning-boringmilling centre and a gear hobbing or deep hole drilling machine
- Detailed improvements to the design of various machine components and increased reliability
- 4-axis turning, workpiece transfer and 6-sided machining with counter spindle variant (M30-G, M35-G MILLTURN)
Highlights M30 and M35 MILLTURN
- Optimised ease of maintenance thanks to improved access to the extendible hydraulics unit and “separate“ cooling unit, the newly designed guide rail covers and improved access to the tool magazine
- Minimal distances from the machining point to the guideways
- Perfectly equipped for gear cutting operations with the Flanx-Plus machining package
- Reduction in tool costs, increased productivity and workpiece quality thanks to process monitoring via WFL iControl: this displays current axis loads and protects the machine against damage with a learning mode.
- Optimum view of the working area thanks to larger screens in the machine housing
- User-friendly thanks to LED lamps integrated in the working area - for improved and, above all, durable lighting.
- Efficient and effortless creation of NC programs using the graphically interactive MILLTURN PRO programming editor
- Ergonomic industrial design. The screen can be swivelled by hand.
- Early detection of errors, maximum precision and safety as well as minimised downtimes thanks to innovative rotor scanning methods
Facts and figures
M30 MILLTURN | M30-G MILLTURN (With counter spindle) left // right | M35 MILLTURN | M35-G MILLTURN (With counter spindle) left // right | |
Working range Centre distance Turning diameter Workpiece weight | Up to 2000mm Up to 520mm Up to 1000KG | Up to 1800mm Up to 520mm Up to 1000KG | Up to 2000mm Up to 520mm Up to 1000KG | Up to 1800 (1680) mm Up to 520mm Up to 1000KG |
Tool Max. weight Max. length | 15Kg 450mm | 15Kg 450mm | 15Kg 450mm | 15Kg 600mm |
Disc magazine storage locations | 40 / 80 tools | - | 40 / 80 / 120 tools | - |
Headstock design left // right: | Power P (100% / S6-
| Power P (100% /
| Power P (100% /
| 32 / 44 kW , 37/ 54 kW
|
Turning-boring-milling unit (upper tool holder) *) Power max., 40% (100%) duty cycle Max. speed Max. torque at the spindle, 40% (100%) duty cycle | 20 (15) kW
250 (190) / 165 (125) / 125 (95) Nm | 20 (15) kW
| 33 (27) kW
| 33 (27) kW
|
