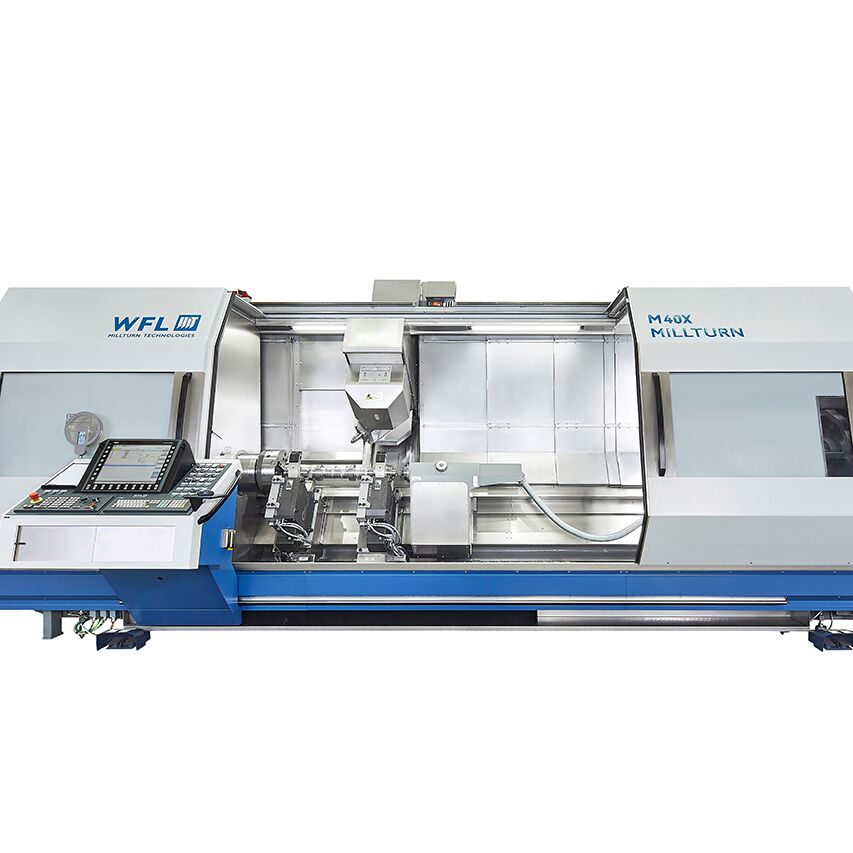

M40, M40-G & M40X, M40X-G MILLTURN
The genius of productivity

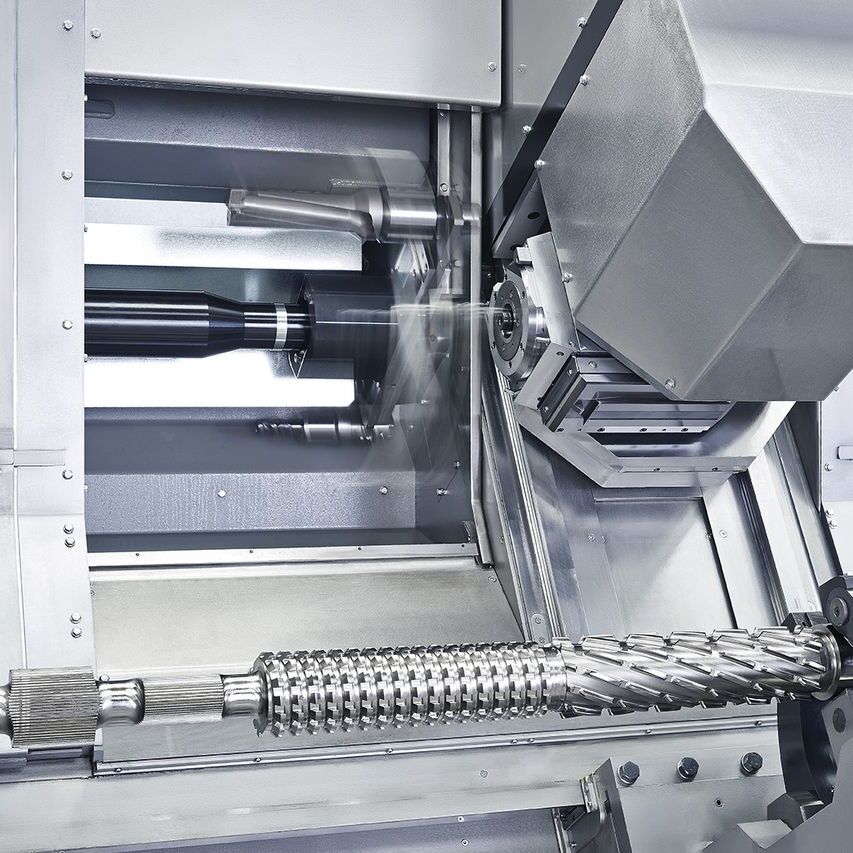

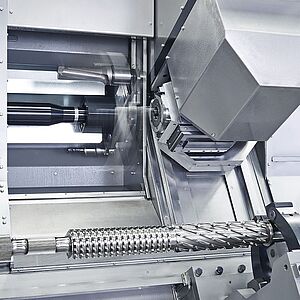

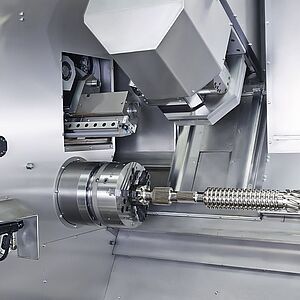

With the M40, M40-G, M40X and M40X-G MILLTURN series, WFL Millturn Technologies is presenting a new generation of multifunctional turning-boring-milling centres for one-hit machining of complex chuck and shaft parts up to 520 mm swing over bed. Beside superior output and torque values of the spindle drives, the imposing feed forces in all axes make for superb dynamics and maximum productivity.
Highlights at a glance

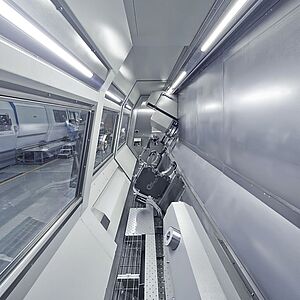

- Wide distances between guideways for the stable accommodation of big steady rests

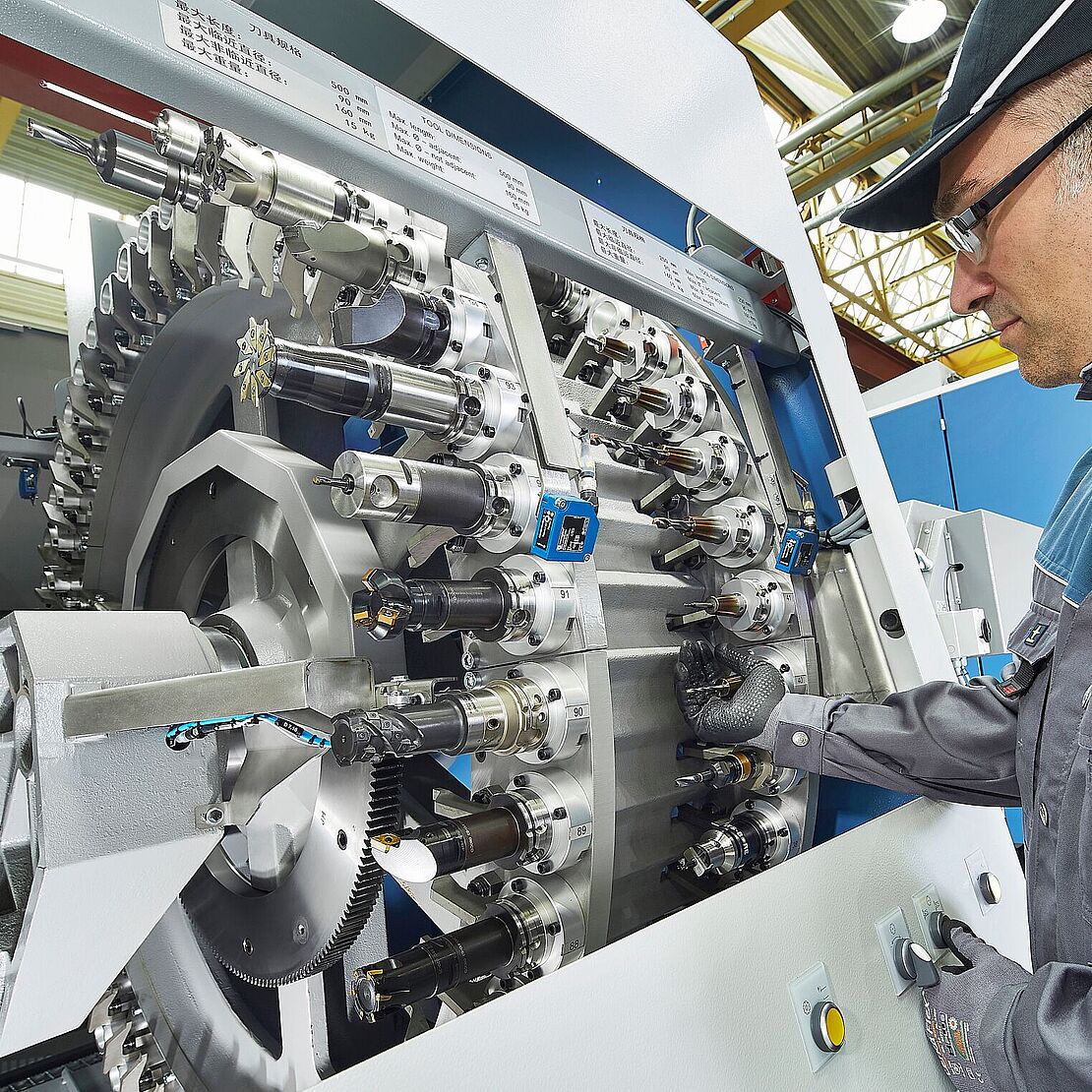

- Pick-up magazine for long tools with standard tool interface
- B-axis turning
- 4-axis turning
- Workpiece transfer
- High-precision measuring with integrated measuring probe

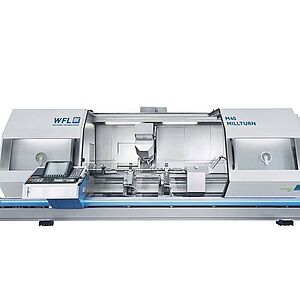

M40 | M40-G | ||
---|---|---|---|
Nominal center distance | mm | 1000/2000/3000/4500 | 1000/2000/3000/4500 |
Swing - ø over Top slide | mm | 520 | 520 |
Max. Turning- ø between centers | mm | 520 | 520 |
Max. power, Turning spindle 40% (100%) duty cycle | kW | 33(29)/54(37) | 33(29)/54(37) // 33(29) |
Max. torque, Turning spindle 40% (100%) duty cycle | Nm | 630(550)/2000(1400) | 630(550)/2000(1400) // 630(550) |
Max. spindle speed, Turning spindle | min-1 | 4000/3300 | 4000/3300 // 4000 |
Max. power, Miling spindle 40% (100%) duty cycle | kW | 33(27) | 33(27) |
Max. torque, Milling spindle 40% (100%) duty cycle | Nm | 284(233)/213(175) | 284(233)/213(175) |
Max. spindle speed, Milling spindle | min-1 | 9000/12000/* | 9000/12000/* |
Swiveling angle B - axis | Grad | -110...+110 | -110...+110 |
Travel Y - axis | mm | 250(-100...+150) | 250(-100...+150) |
Travel X - axis | mm | 600(-20...+580) | 600(-20...+580) |
Tailstock | type | Mechatronic | - |
Tool magazine | number | 50/100/150/200 | 50/100/150/200 |

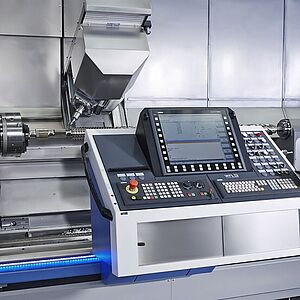

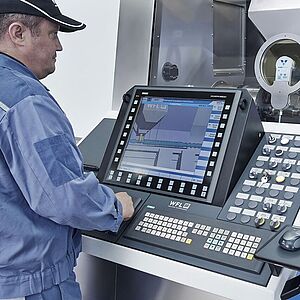

Control SIEMENS | type | SINUMERIK 840D sl | SINUMERIK 840D sl |

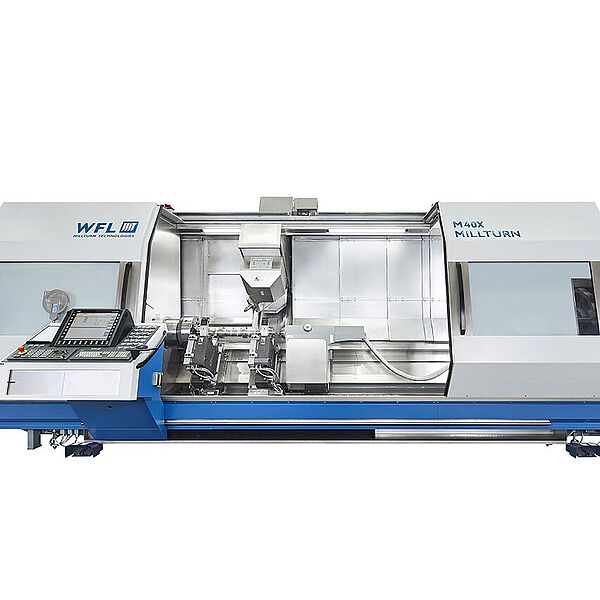

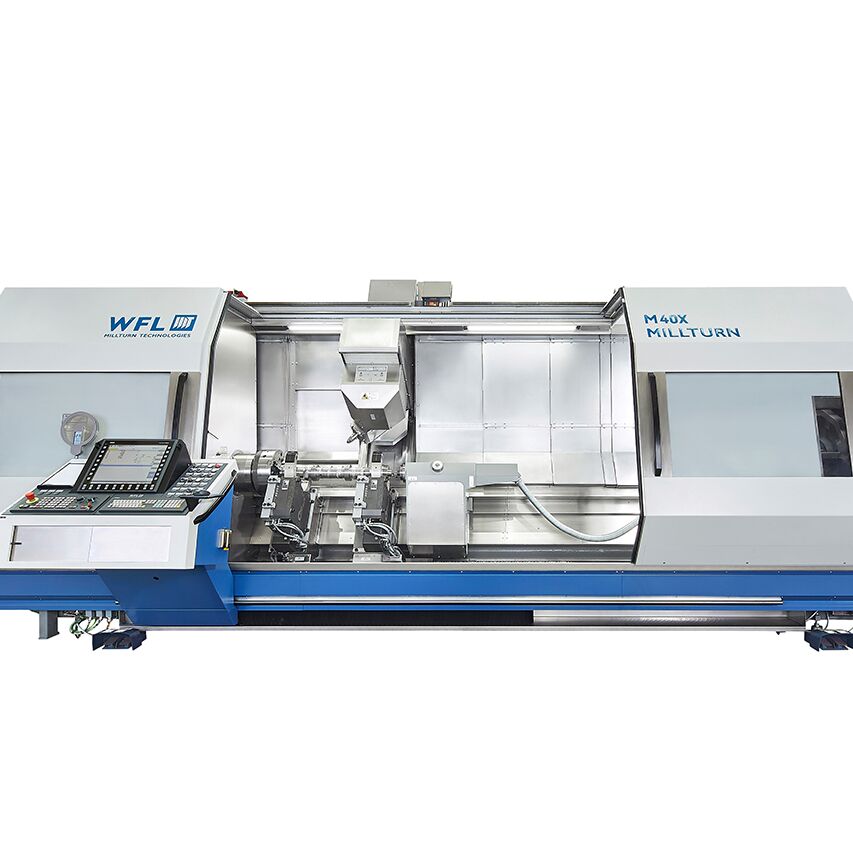

M40X | M40X-G | ||
---|---|---|---|
Centre distance | mm | 1000/2000/3000/4500 | 1000/2000/3000/4500 |
Swing diameter over top slide | mm | 520 | 520 |
Turning diameter max. | mm | 520 | 520 |
Power max. 40% (100%) ED | kW | 33(29)/54(37) | 33(29)/54(37)//33(29) |
Torque max. 40% (100%) duty cycle | Nm | 630(550)/2000(1400) | 630(550)/2000(1400)//630(550) |
Speed max. | min-1 | 4000/3300 | 4000/3300//4000 |
Power max. 40% (100%) duty cycle | kW | 33(27)//40(35) | 33(27)//40(35) |
Torque at the spindle max. 40% (100%) duty cycle | Nm | 284(233)/213(175)//480(420)/300(263) | 284(233)/213(175)//480(420)/300(263) |
Speed max. | min-1 | 9000/12000/*//5000/8000 | 9000/12000/*//5000/8000 |
B-axis swivelling range | degree | -110...+110 | -110...+110 |
Y-axis travel | mm | 400(-100...+300) | 400(-100...+300) |
X-axis travel | mm | 800(-20...+780) | 800(-20...+780) |
Tailstock | Type | Mechatronic | - |
Number of tool stations (place-encoded) | number | 50/100/150/200//36/72/108/144 | 50/100/150/200//36/72/108/144 |
Control SIEMENS | Type | SINUMERIK 840D sl | SINUMERIK 840D sl |
The standard tool interface
High coolant pressure
- High coolant pressure for optimised chip breakage
- Coolant pressure below 150 bar – High Pressure Coolant (HPC)
- Coolant pressure between 150 and 350 bar – Ultra-High Pressure Coolant (UHPC)
- Significant increases in cutting parameters, tool life and process safety
- Reduced machining costs
- No additional interfaces required for up to 200 bar (coolant supplied directly through the milling spindle)
Coolant solutions for deep hole drilling
- High coolant supply rates to ensure the best possible removal of chips from the hole – this makes the MILLTURN a fully-fledged deep hole drilling machine
- Coolant supply rates of up to 200 l/min
- External interfaces with manual docking
- Individual configuration of the coolant pumps and filters

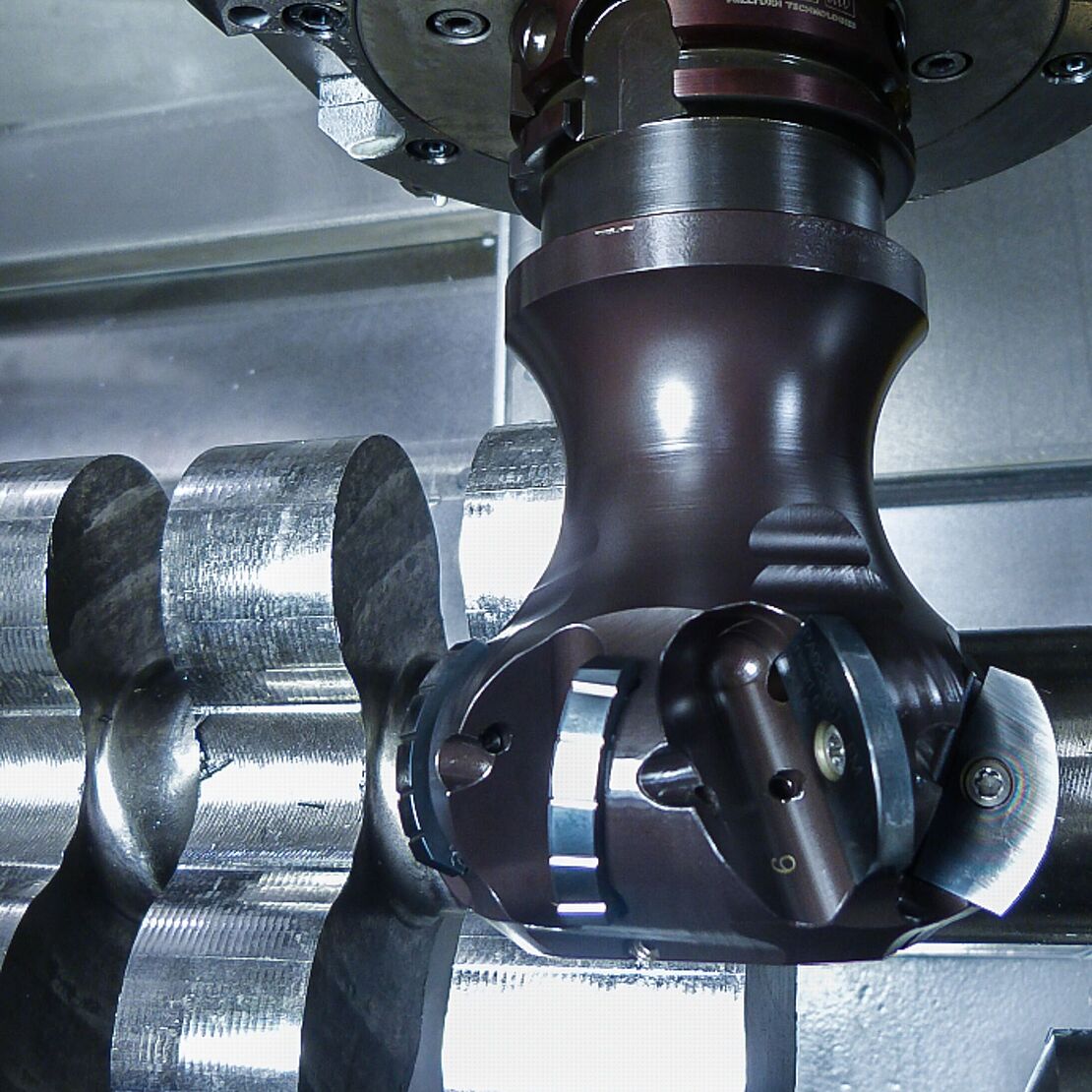

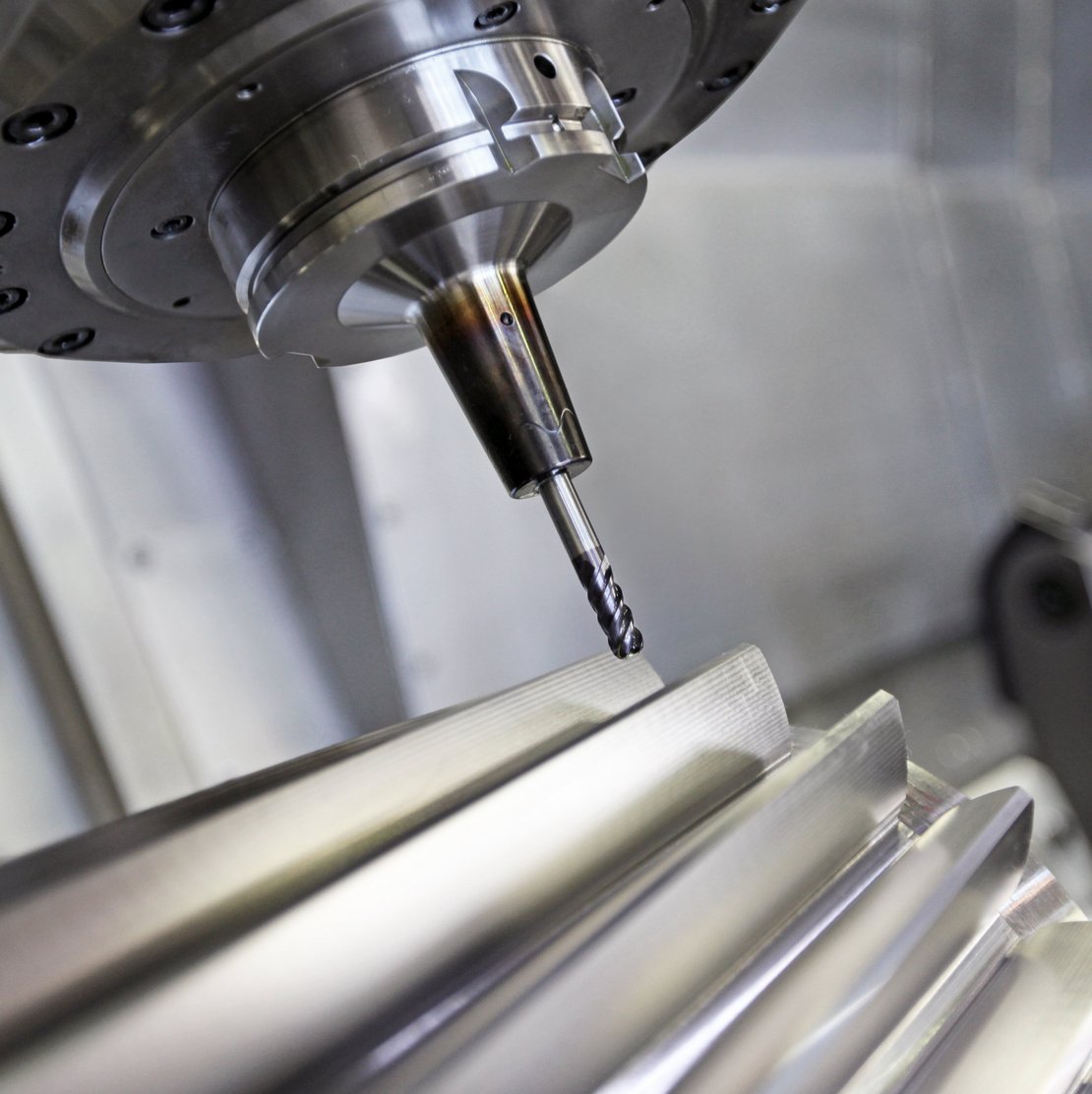

Special tool heads
- Special tool heads for special manufacturing requirements (difficult to access workpiece geometries, special processes and special coolant solutions)
- The special tool heads are handled by means of the automatic tool changer
- Optional torque support prevents undesirable turning of the special tool head and ensures a rigid connection to the swivel housing
