M20, M20-G MILLTURN
Smart Machining

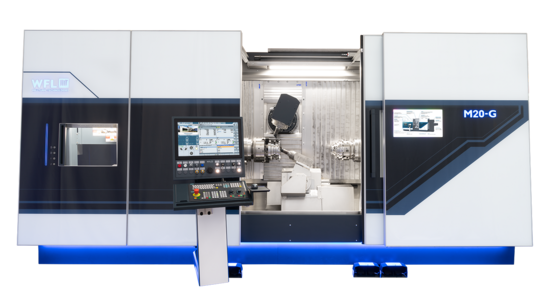

The M20 MILLTURN is the latest addition to the MILLTURN range and the ideal solution for users who are looking for a powerful complete machining centre. Special features include the high stability of the machine as well as a holistic motor spindle concept, which encompasses practically every machining technology.
Decades of expertise in complete machining have gone into the development of a completely new machine. Both the design and the technology are highly advanced.
The range of applications covered by the M20 is almost infinite. The machine is capable of carrying out demanding and complex machining tasks found in the aviation, automotive, engineering and plastics industries. Thanks to its extreme flexibility, the machine is also ideal for contract manufacturers.
Highlights at a glance
Design highlights
- New, innovative and modern design
- Machine frame made from spheroidal graphite for high stability and very good damping behaviour
- Powerful and high-torque water-cooled motor spindles
- Very small gaps in the lower slide systems, as there are no telescopic plates
- Optional individual tool carrier at the bottom
- Automatic workpiece transfer
- Production cell with integrated loading and unloading
- B-axis for turning-boring-milling unit with direct drive via watercooled torque motor for excellent dynamics
Technological highlights
- Consistent 6-sided machining with counter spindle
- Two B-axis systems in one machine for simultaneous B-axis turning
- Perfect for gear skiving
Software highlights
- Extensive sensor
- 24“ multitouch display
- Ergonomic operator panel
- Optional performance data cockpit
M20 | M20-G | ||
|---|---|---|---|
| Centre distance | mm | 1000/1500 | 1000/1500 |
| Swing diameter of top compound slide | mm | 500 | 500 |
| Max. turning diameter between centres | mm | 500 | 500 |
| Max. power, main spindle 40% at (100%) duty cycle | kW | 44(32) | 44(32) |
| Max. torque, main spindle 40% at (100%) duty cycle | Nm | 838(610) | 838(610) |
| Max. speed, main spindle | rpm | 4000 | 4000 |
| Max. power, milling spindle at 40% (100%) duty cycle | kW | 25(20) | 25(20) |
| Max. torque, milling spindle at 40% (100%) duty cycle | Nm | 110(85) | 110(85) |
| Max. speed, milling spindle | rpm | 20000 | 20000 |
| B-axis tilt angle | Degrees | +/-120 | +/-120 |
| Y-axis travel | mm | 260(+/-130) | 260(+/-130) |
| X-axis travel | mm | 575(-100...+475) | 575(-100...+475) |
| Tailstock | Type | MK5 | - |
| Tool magazine | Number | 80 | 80 |
| SIEMENS control | Type | SINUMERIK ONE | SINUMERIK ONE |
