M175 MILLTURN
The new dimension

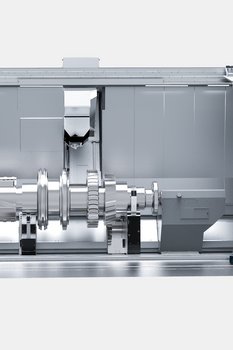

Bigger, stronger, faster - with the latest M-series product - the M175 MILLTURN - WFL is launching a new giant of complete machining. This contains significant innovations, ensures the highest precision and an advantageous versatility for customer requirements. The new turning-boring-milling unit offers a max. swing diameter of 1750mm and can accommodate up to 15.000kg heavy workpieces very stable due to the new, large-sized bed guideway for steady rest and tailstock.
The turning-boring-milling unit has an X-axis travel of 162mm and a Y-axis travel of 1100mm and can therefore be used uncompromisingly and universally, e.g. for deep radial machining.
Due to the large volume box structure of the turning-boring-milling unit cross slide with a very wide bed guide base and multiple arrangement of ground gliding guideways in the X- and Z-axis, the tool carrier system has a particularly high stability.
This massive and powerful construction is combined with proven main and milling spindle systems, whose 113kW and 58kW drives are extremely reliable in their performance.
Highlights at a glance
- Very stable construction
- Deep radial machining possible
- 58kW milling power
- 113kW main spindle power
- Max. workpiece weight 15.000kg
- Y-axis travel 1100mm
- X-axis travel 1620mm
- Max. turning diameter 1750mm
- Specially configured machine on customer request
M175 | ||||
|---|---|---|---|---|
Nominal center distance | mm | 2000/3000/5000/6500/8000/10000/12000 | ||
Swing - ø over Top slide | mm | 1750 | ||
Swing - ø over bed | mm | 1840/1810/1790/1750/1730/1700/1660 | ||
Max. power, Turning spindle 40% duty cycle | kW | 103//113 | ||
Max. torque, Turning spindle 40% duty cycle | Nm | 10160//14000 | ||
Max. torque, Turning spindle 100% duty cycle | Nm | 7300//12400 | ||
Max. spindle speed, Turning spindle | min-1 | 800//800 | ||
Max. power, Miling spindle 100% duty cycle | kW | 74//100 | ||
Max. torque, Milling spindle 100% duty cycle | Nm | 500/310 | ||
Max. spindle speed, Milling spindle | min-1 | 5000/8000 | ||
Swiveling angle B - axis | degree | - 110/+110 | ||
Travel Y - axis, 45kW | mm | 1100 (-550...+550) | ||
Travel X - axis, 45kW | mm | 1620 (-20...+1600) | ||
Tailstock, quill - ø | mm | 300 | ||
Tool magazine | number | 36/72/108/200 | ||
Control SIEMENS | Type | SINUMERIK 840D sl | ||
