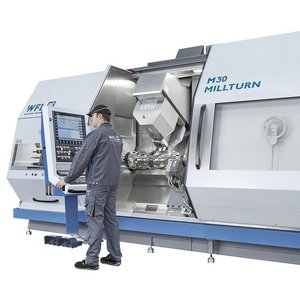

M30, M30-G & M35, M35-G MILLTURN
The little one for everything

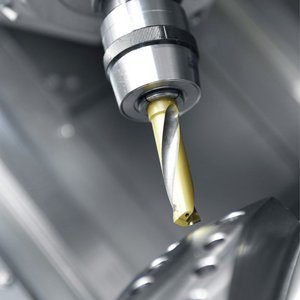

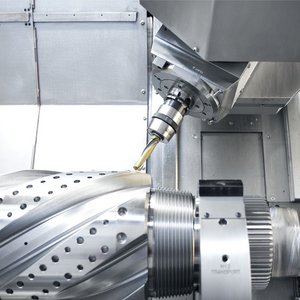

The multifunctional turning-boring-milling centers M30/M35 and M30-G/M35-G allow complete machining of complex shafts and chuck parts with a swing of up to 520mm and machining lengths of up to 2000mm. It can thus function as a lathe, a 5-axes machining centre and if needed as a gear-cutting or deep-hole drilling machine.
Highlights at a glance
- 80 bar coolant pressure
- Inprocess measuring
- 5-axis-machining
- 4-axis turning
- Workpiece transfer
- 6 side machining
M30 | M30-G | ||
|---|---|---|---|
| Nominal center distance | mm | 2000 | 1800 |
| Swing - ø over Top slide | mm | 520 | 520 |
| Max. Turning- ø between centers | mm | 520 | 520 |
| Max. power, Turning spindle 40% (100%) duty cycle | kW | 33(29) | 33(29)//33(29) |
| Max. torque, Turning spindle 40% (100%) duty cycle | Nm | 630(550) | 630(550)//630(550) |
| Max. spindle speed, Turning spindle | min-1 | 4000 | 4000//4000 |
| Max. power, Miling spindle 40% (100%) duty cycle | kW | 20(15) | 20(15) |
| Max. torque, Milling spindle 40% (100%) duty cycle | Nm | 250(190)/165(125)/125(95) | 250(190)/165(125)/125(95) |
| Max. spindle speed, Milling spindle | min-1 | 6000/9000/12000 | 6000/9000/12000 |
| Swiveling angle B - axis | degree | -110...+110 | -110...+110 |
| Travel Y - axis | mm | 250(-100...+150) | 250(-100...+150) |
| Travel X - axis | mm | 600(-20...+580) | 600(-20...+580) |
| Tailstock | type | Mechatronic | - |
| Tool magazine | number | 40/80 | 40/80 |
| Control SIEMENS | type | SINUMERIK 840D sl | SINUMERIK 840D sl |
M35 | M35-G | ||
|---|---|---|---|
| Nominal center distance | mm | 2000 | 1800(1680) |
| Swing - ø over Top slide | mm | 520 | 520 |
| Max. Turning- ø between centers | mm | 520 | 520 |
| Max. power, Turning spindle 40% (100%) duty cycle | kW | 33(29)/54(37) | 33(29)/54(37)//33(29) |
| Max. torque, Turning spindle 40% (100%) duty cycle | Nm | 630(550)/1600(1100) | 630(550)/1600(1100)//630(550) |
| Max. spindle speed, Turning spindle | min-1 | 4000/3300 | 4000/3300//4000 |
| Max. power, Miling spindle 40% (100%) duty cycle | kW | 33(27) | 33(27) |
| Max. torque, Milling spindle 40% (100%) duty cycle | Nm | 284(233)/213(175) | 284(233)/213(175) |
| Max. spindle speed, Milling spindle | min-1 | 9000/12000/* | 9000/12000/* |
| Swiveling angle B - axis | degree | -110...+110 | -110...+110 |
| Travel Y - axis | mm | 250(-100...+150) | 250(-100...+150) |
| Travel X - axis | mm | 600(-20...+580) | 600(-20...+580) |
| Tailstock | type | Mechatronic | - |
| Tool magazine | number | 40/80/120 | 40/80/120 |
| Control SIEMENS | type | SINUMERIK 840D sl | SINUMERIK 840D sl |

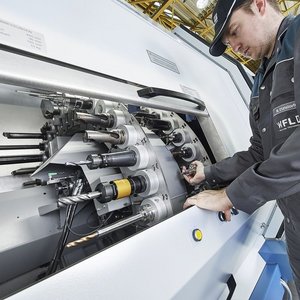

The tool magazine - disc instead of chain magazine
Tools up to 15 kg
- Capacity for 80 (120 optional for M35/M35-G) tools in the disc magazine
- Set up time parallel to machining
- Max. tool length: M30/M30-G: 450 mm; M35/M35-G: 450/600 mm
- Max. tool weight: 15 kg

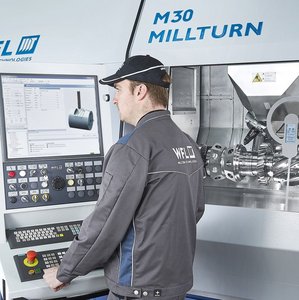

Intelligent tool management
- User-friendly software functions
- Simple and logical menu navigation
- Tool corrections automatically converted by the control system
Cleanliness as standard
- Dripping coolant returned
- Special bed design for perfect chip flow
- Chip conveyor extended to the magazine area for absolute cleanliness
