M70, M70-G MILLTURN
Der Potentialentfalter

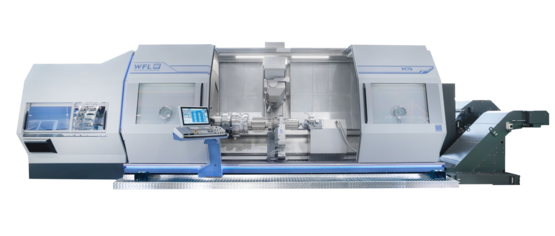

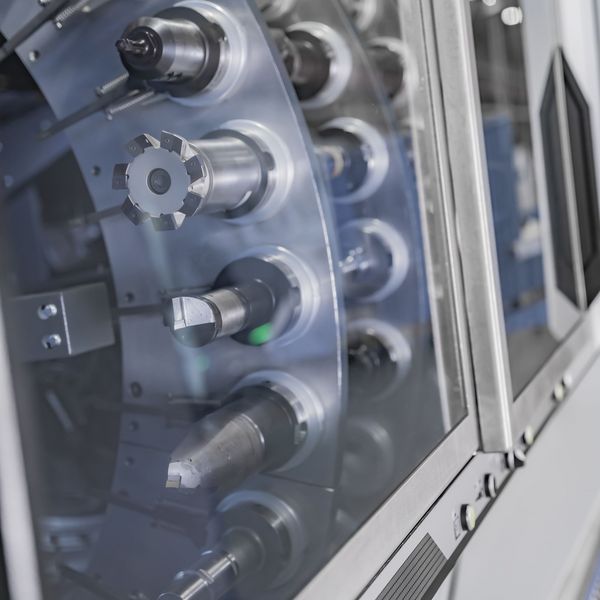

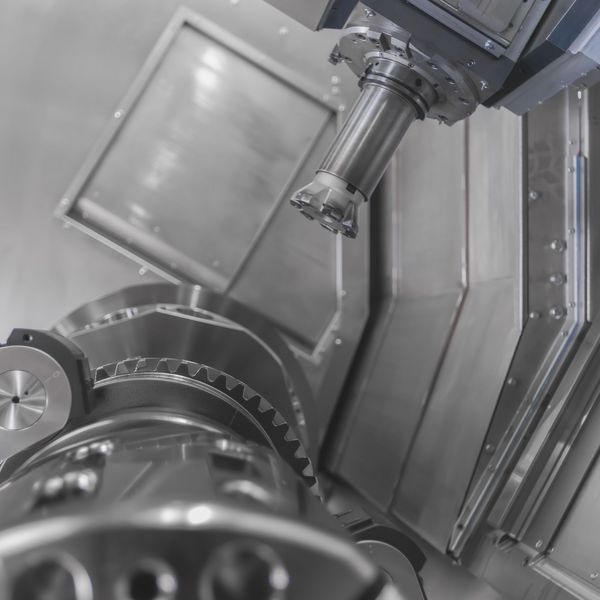

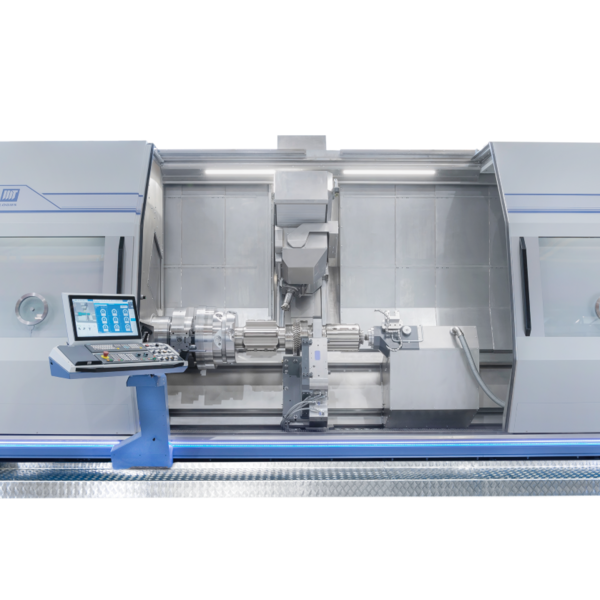

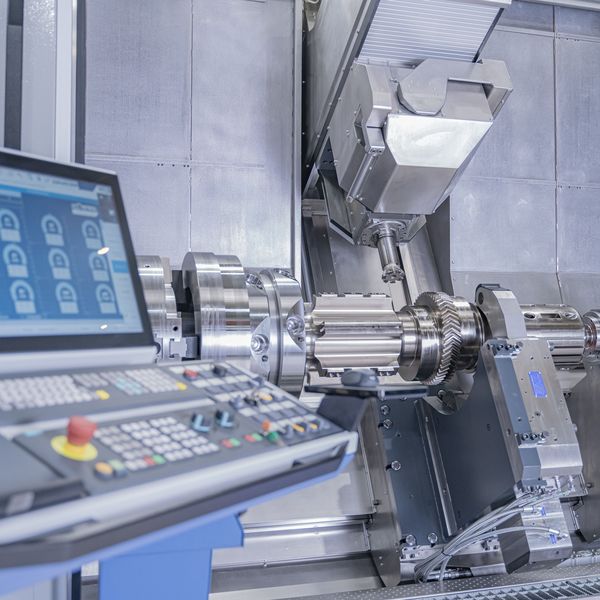

The M70 MILLTURN boasts an enormous variety of options from the extensive and well-known WFL modular system. These design ratios have been optimised for the specific machine versions, resulting in an impressive range of functions. The machine concept is designed to minimise the distances between the workpiece, tool and slideways while maximising the distances between the individual guideways. This results in optimum stability and geometry. The easily accessible front-loading tool magazine is characterised by its compact, stable design and safe access.
Highlights at a glance

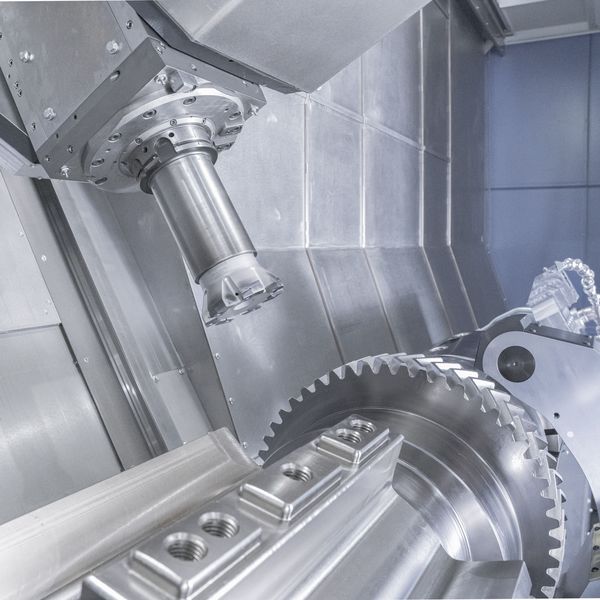

- Exclusive modular tool interfaces offering maximum long-term accuracy and rigidity.
- The standard tool interface has high feed forces.
- Highly productive deep-hole drilling methods and various special technologies.
- The prism tool system allows tools to be used that exceed the maximum dimensions of standard tools.
- Use of solid prism holders and automatic cutting head change when using the WFL system boring bar.

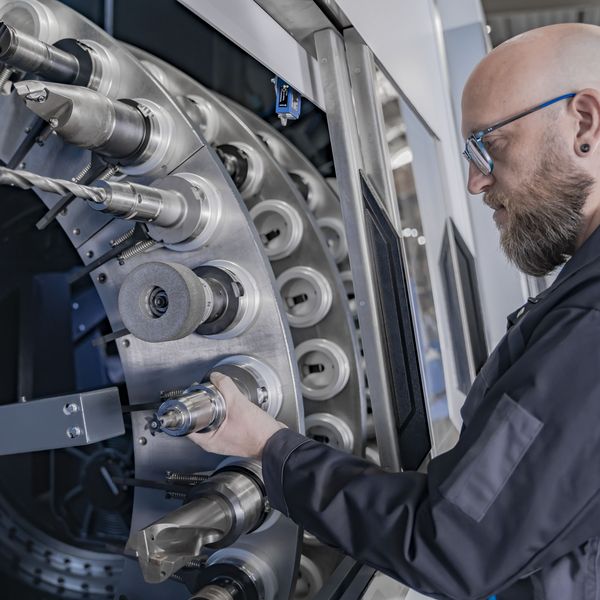

- Two magazine variants
M70 | M70-G | ||
|---|---|---|---|
| Nominal center distance | mm | 1000/2000/3000/4500/6000/8000 | 1000/2000/3000/4500/6000/8000 |
| Swing - ø over Top slide | mm | 850/850/850/850/820/790 | 850/850/850/850/820/790 |
| Max. power, Turning spindle 40% (100%) duty cycle | kW | 56(40)/80(60) * | 56(40)/80(60) // 60(40)/90(60) * |
| Max. torque, Turning spindle 40% (100%) duty cycle | Nm | 3420(2440)/5860(4500) * | 3420(2440)/5860(4500) // 3000(2000)/4800(3200) * |
| Max. spindle speed, Turning spindle | min-1 | 2400/1600 * | 2400/1600 // 2400/1600 * |
| Max. power, Miling spindle 40% (100%) duty cycle | kW | 58(45) * | 58(45) * |
| Max. torque, Milling spindle 40% (100%) duty cycle | Nm | 640(500)/400(310) * | 640(500)/400(310) * |
| Max. spindle speed, Milling spindle | min-1 | 5000/8000 * | 5000/8000 * |
| Swiveling angle B - axis | Grad | 220(-110…+110) | 220(-110…+110) |
| Travel Y - axis | mm | 525(-225…+300) | 525(-225…+300) |
| Travel X - axis | mm | 900(-20…+880) | 900(-20...+880) |
| Tailstock female taper | Type | MK6 | - |
| Tool magazine storage system | number | 36/72/108/200 * | 36/72/108/200 * |
| Control SIEMENS | Type | SINUMERIK ONE | SINUMERIK ONE |
