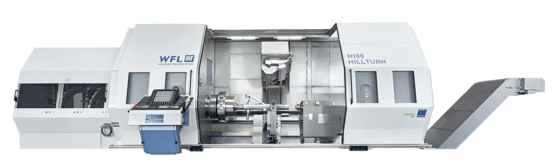

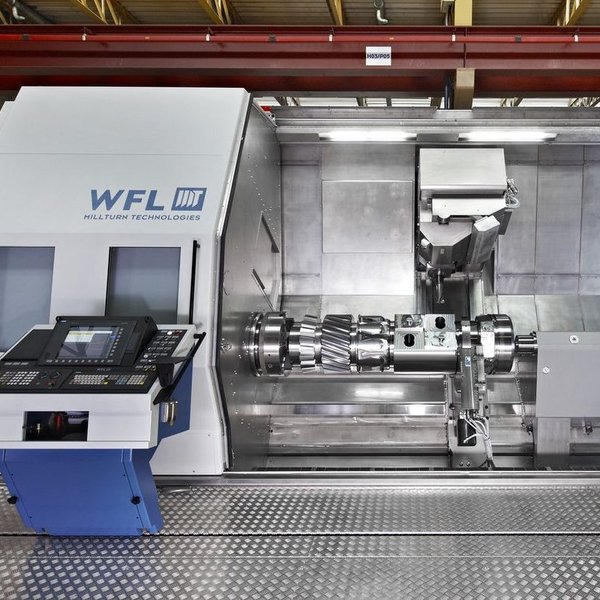

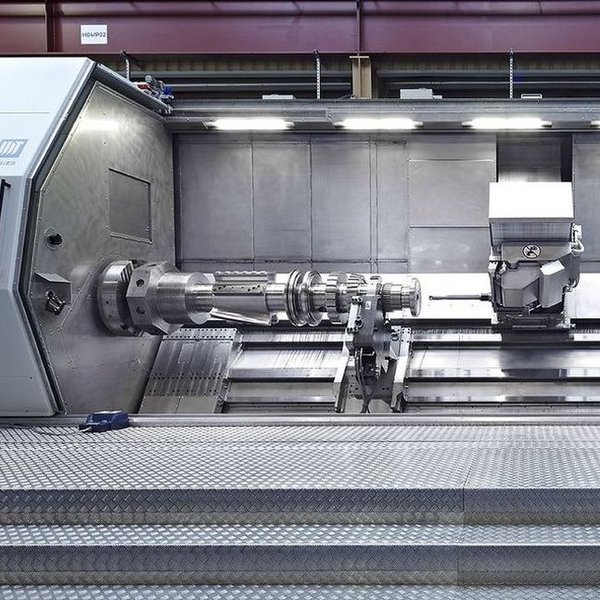

M100, M120, M150 MILLTURN
The top tier
With the models M100, M120 and M150 WFL Millturn Technologies is presenting the absolute champions of multifunctional turning-boring-andmilling centers, allowing one-hit machining of complex workpieces of up to 8m* length. Besides superior output and torque values of the spindle drives, the imposing feed forces in all axes make for superb dynamics and maximum productivity.

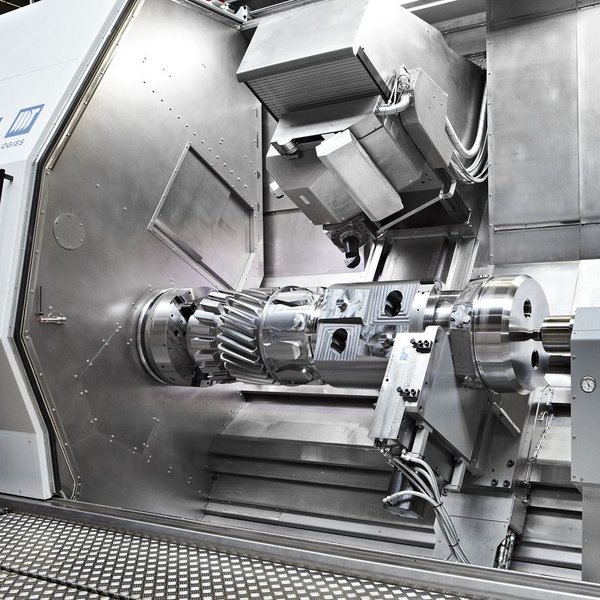

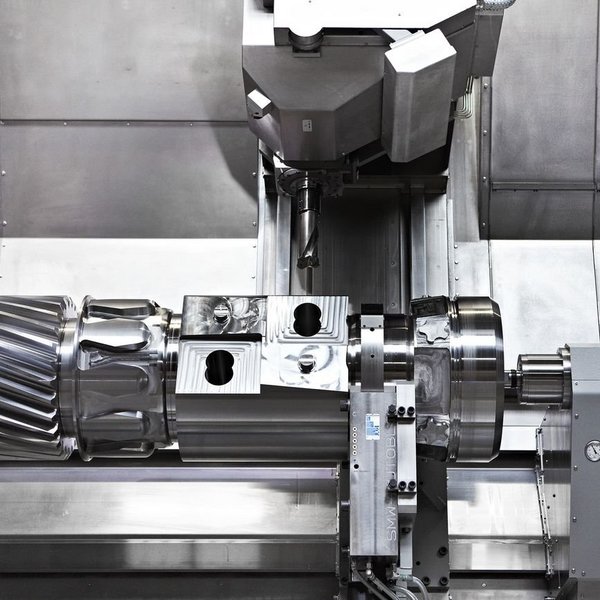

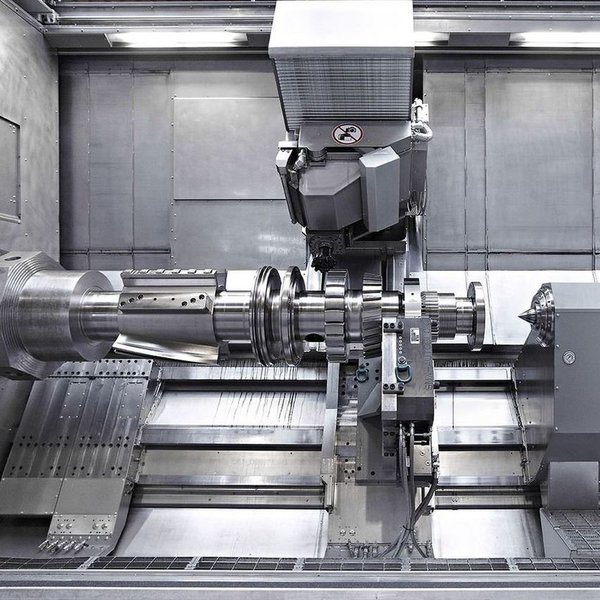

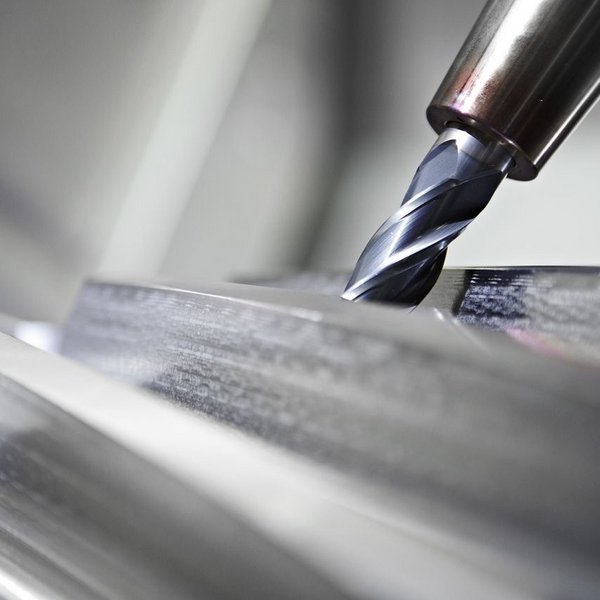

Turning, milling, boring, gear cutting, gun drilling as well as ID machining can be performed under any angle of the tool. The interpolation of up to five axes makes machining of any geometrical profile possible. The sturdy, single piece 60° slant bed made of grey cast iron and the use of generously dimensioned guideways with extra-wide size ensure perfect stability and optimum antivibration behaviour. The incomparable number of hardware and software options plus the meticulously designed machine structure are the consequence of many years at the edge of technology.
Highlights at a glance
- Ergonomically designed workspace
- In-process measuring
- Chuck mounted on right side
M100 | M120 | M150 | ||
|---|---|---|---|---|
| Nominal center distance | mm | 2000/3000/5000/6500/8000/10000/12000 | ||
| Swing - ø over Top slide | mm | 900 | 1140 | 1480 |
| Swing - ø over bed | mm | 980/940/920/880/860/820/780 | 1220/1180/1160/1120/1100/1060/1020 | 1560/1520/1500/1460/1440/1400/1360 |
| Max. power, Turning spindle 40% duty cycle | kW | 103//113 | 103//113 | 103//113 |
| Max. torque, Turning spindle 40% duty cycle | Nm | 6400/10160//8790/14000 | 6400/10160//8790/14000 | 6400/10160//8790/14000 |
| Max. torque, Turning spindle 100% duty cycle | Nm | 4600/7300//7810/12400 | 4600/7300//7810/12400 | 4600/7300//7810/12400 |
| Max. spindle speed, Turning spindle | min-1 | 1600 / 1000 // 1600 /1000 | 1600/1000//1600/1000 | 1600/1000//1600/1000 |
| Max. power, Miling spindle 100% duty cycle | kW | 30/55 | 30//45//55 | 45//55 |
| Max. torque, Milling spindle 100% duty cycle | Nm | 315/730 | 315//500/310//730 | 500/310//730 |
| Max. spindle speed, Milling spindle | min-1 | 6000/3200 | 6000//5000/8000//3200 | 5000/8000//3200 |
| Swiveling angle B - axis | degree | - 110/+90 | - 110/+90 | - 110/+90 |
| Travel Y - axis, 30kW | mm | 600(-200...+400) | 600(-250...+350) | - |
| Travel Y - axis, 45kW | mm | - | 650(-290...+360) | 800(-400...+400) |
| Travel Y - axis, 55kW | mm | 500(-200...+300) | 650(-300...+350) | 800(-450...+350) |
| Travel X - axis, 30kW, 55kW | mm | 920(-20…+900) | 1120(-20…+1100) | 1120(-20…+1100) |
| Travel X - axis, 45kW | mm | - | 1100(-20...+1080) | 1150(-20...+1130) |
| Tailstock, quill - ø | mm | 180 | 180/300 | 300 |
| Tool magazine | number | 36/72/108 / * | 36/72/108 / * | 36/72 /108/ * |
| Control Siemens | type | SINUMERIK 840D sl | SINUMERIK 840D sl | SINUMERIK 840D sl |
Prismatic tools system
The prismatic interface
A second tool interface takes care of those tools that exceed the maximum dimensions of the standard equipment. Thanks to the particularly stable prismatic accommodation, boring bars, solid drills, angular heads and facing heads can be securely fixed onto the milling unit. The use of the special WFL system boring bar opens up the possibility of automatically changing the cutting heads too. For the automatic handling of heavy ID-machining tools, two different magazine types are available.
Pick-up magazine
Up to 4 tools (3 on the M100 and M120) with a maximum length of 1700 mm and a weight of 200 kg can be automatically deposited in this separate magazine above the headstock.
Heavy boring bar magazine
An extension of the standard disc-type magazine and the corresponding tool stations accomodates up to 18 bars measuring 2,500 mm and weighing 180 kg maximum in addition to the standard tools. In this case, automatic handling of the tools is ensured by a supplementary tool robot.
