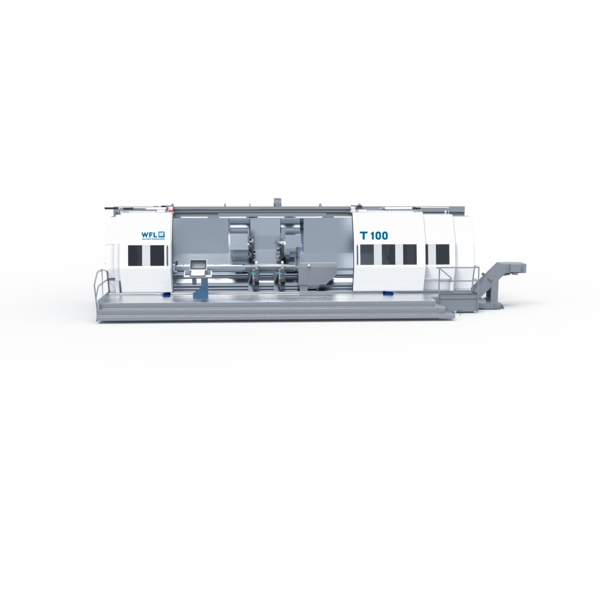

T series – slant bed turning machines
Based on the proven MILLTURN complete machining centre, WFL offers a turning machine concept for the highest standards: the T and TB series. These slant bed turning machines, available in varying sizes between T40 and T150, enable high-precision machining of workpieces up to 1480 mm in diameter and 12000 mm long.
The T40 to T150 series are slant bed turning machines with one or more tool turrets for difficult machining and the high-precision machining of shafts and chuck parts as well as ID turning with long boring bars. The TB series with individual tool holder is the optimum solution for complex turned parts and for turned parts which require a high tool stock level. WFL turning machines in the TB series are equipped with Yand B-axes, as well as an external large-capacity tool magazine and an automatic tool changer. The optional prismatic tool system enables automated use of especially long and heavy tools: The options for challenging machining are therefore massively increased.
More features of the T series
- Tool turret
- Pick-up magazine
- Prismatic tool magazine
- High-precision workpiece measurement
- Coolant units for deep hole drilling
- Boring bar slide for T and TB machines
- Ultra-High Pressure Coolant (UHPC)
Fast and reliable: the tool change
- Fully automatic tool change with double gripper for tools at the standard interface
- Highly dynamic change processes save huge amounts of time
- Reliable change of processes, even with heavy tool weights
- Tool change in any Z-axis position
- Change tools up to 900 mm long and weighing up to 35 kg (depending on the machine type)
Disc magazine for standard tools
- Maintenance-free standard disc magazine with up to 108* tool stations
- Can be equipped from the front side of the machine during machining
- Extremely user-friendly
- Convenient software functions support the foresighted and cross-task equipping of the magazine
- Some machine types have an optional chain magazine version with increased storage capacity
*Larger number available upon request (chain magazine)
Machining units on the top guide way
Components on the bottom guide way
